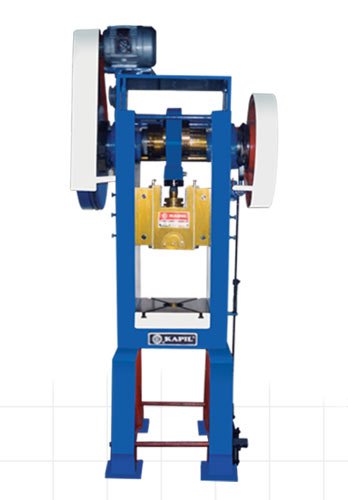

Pillar Type Machine

Technical Specification Are in m.m
Model KPPC1 KPPC2 KPPC3 KPPC4 KPPC5 KPPC6 KPPC7 KPPC8 KPPC9
Capacity (Tonnes)
 5 10 20 30 50 75 100 150 200
Adjustability of Stroke
 6.25 6.50 13.76 13.88 13.101 13.114 13.127 13.152 13.175
Shut Height (S.U.A.)
 152 201 250 300 375 450 505 610 653
Adjustment of Ram
 15 25 38 38 45 50 50 50 50
Crankshaft dia. At main Bearing
51 57 76 82 95 108 125 145 160
Troat Distance
90 115 150 175 240 280 305 350 381
Hole in Ram (dia x depth)
 25 x 45 25 x 50 32 x 50 38 x 65 45 x 75 50 x 90 63 x 90 63 x 100 63 x 110
Size of Table (LR X FB)
 305 x 190 406 x 254 483 x 305 533 x 355 635 x 483 685 x 560 762 x 610 812 x 700 914 x 760
Thickness of Table
45 50 58 65 75 90 100 100 115
Opening in Table
63 90 100 115 125 150 175 200 225
Stroke per Minute (Nog.)
 80 70 45 40 35 50 40 35 30
Electric Motor (1440 RPM )
1 1 2 3 5 7.5 10 15 20
Floor to Top of Bed
 635 710 750 785 815 900 900 900 900

Note : As improvement are in-corporate from time to time, the illustration and specification are not binding in details
